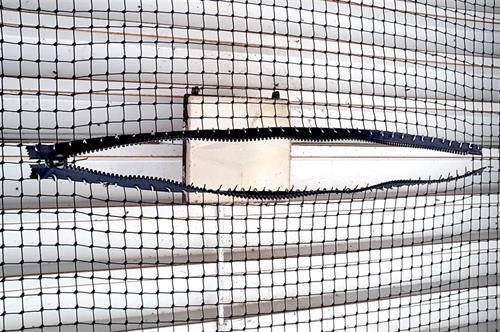

C Ring Tool C Ring Tool C Ring Tool Net zipper install Net Zipper install closed Net Zipper install open Net installation
Click an image to see a larger picture.

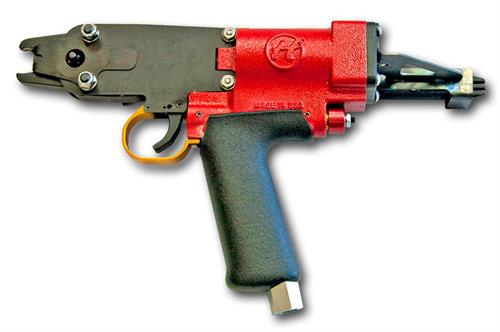

C Ring Tool

Netting Accessories and Tools

All the tools and accessories you need to finish a bird netting installation quickly and efficiently.

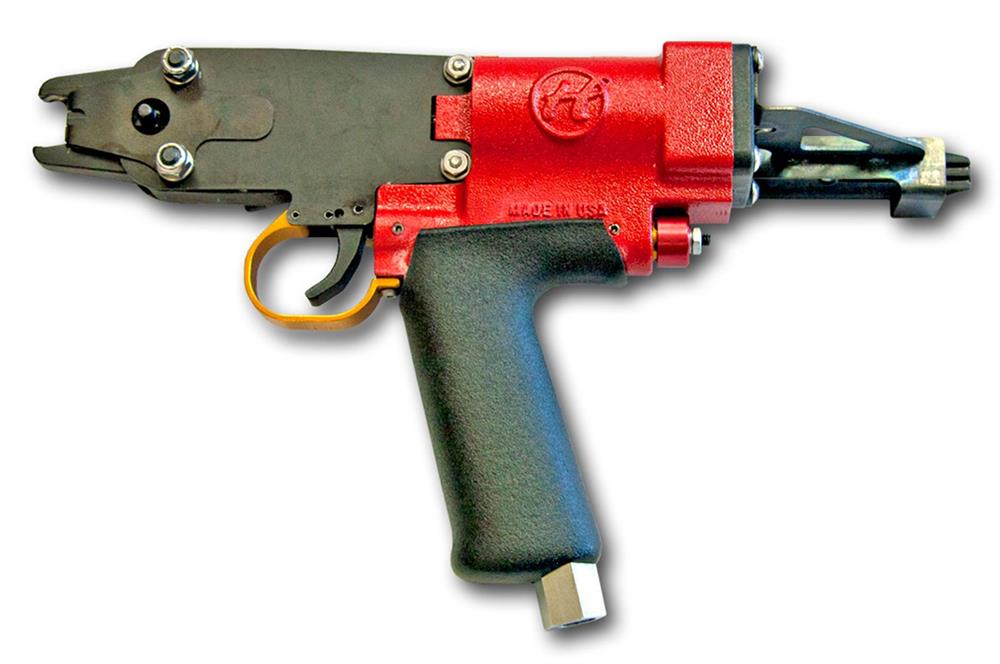

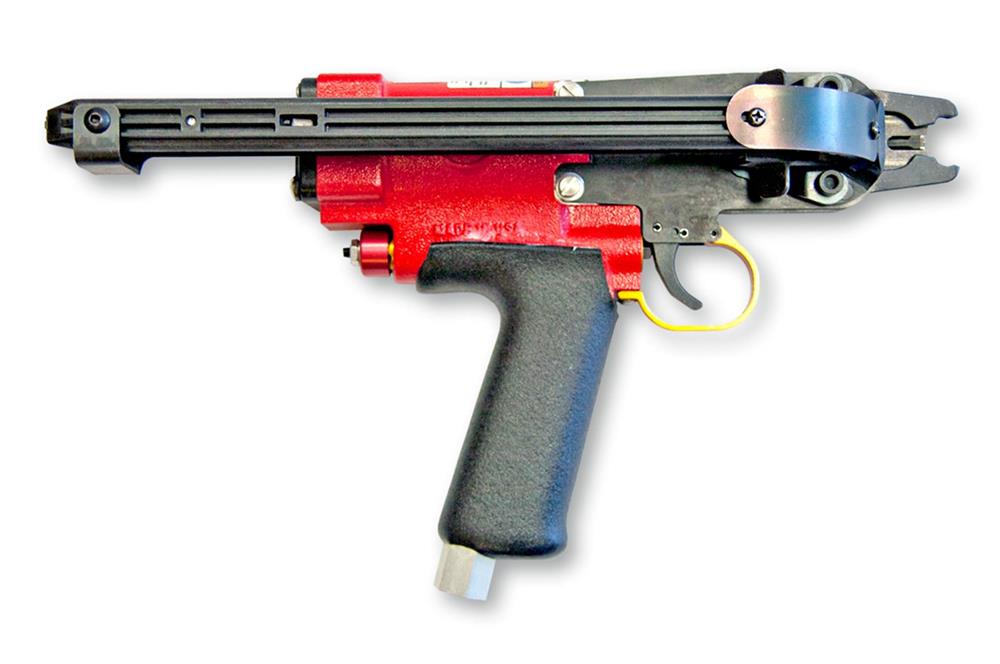

An air powered, lightweight ring tool that quickly installs stainless steel 3/4" C Rings around netting, cables, wires and other small diameter objects. A must for large bird netting jobs or for animal/bird trap repair.

#C Ring Tool - Air powered C-ring tool for 16 Gage 3/4" C Rings

C-Ring Tool Specifications:
Dimensions: 12-3/4" long X 8-5/8" high X 3-5/8" wide
(32.3cm long X 22cm high X 9.3cm wide)
Weight: 3.0 pounds / 1.3kg
Magazine type: rear loading
Staple type: C style, 3/4"
Magazine capacity: 110 rings (1 strip)
Operating pressure: 95 psi (0.6 Nmm2)
Max. operating pressure: 100 psi (0.69 Nmm2)
Air consumption/cycle: 3.2 cubic inch (0.08 cubic meter)
Inner air hose diameter required: 3/8" (9.5mm)
Sound at gun: 82dB

What's in the box? Operator's manual, spare parts list, service instructions.

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

C Ring Tool


Item #:
Price:
Sale Price:
ItemDescriptionPriceQty

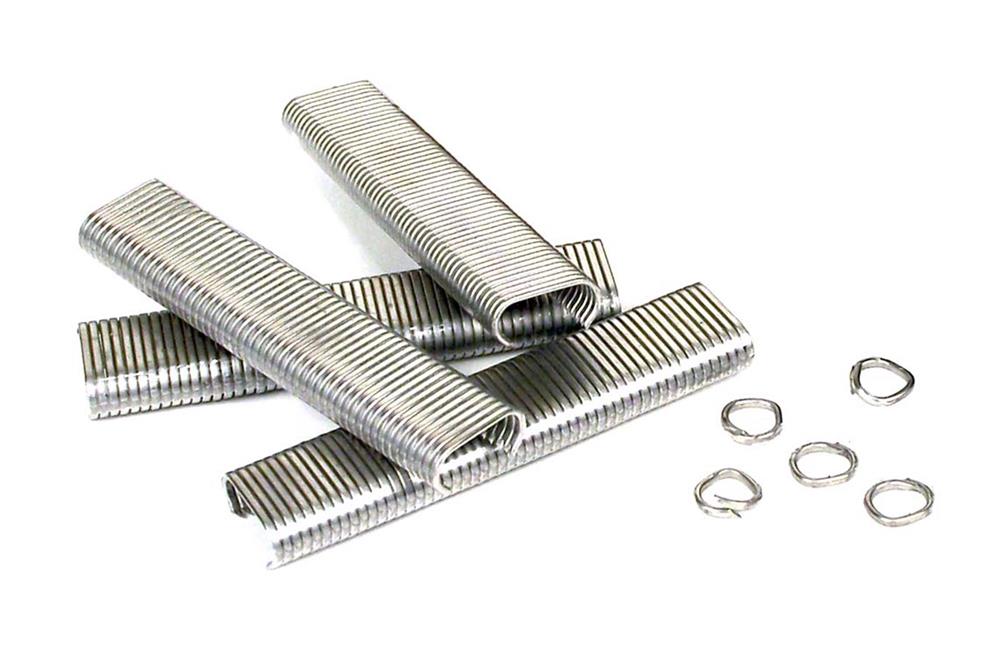

C Rings Stainless 3/4 C Rings Stainless 3/4" C-Rings for C-Ring Tool 11,000 ct Box $186.00
How Many Rings do I need?

Cable Attachment: 1 ring per mesh
For 9/16" mesh size use 20 rings per foot
For 3/4" mesh size use 16 rings per foot
For 2" mesh size use 6 rings per foot

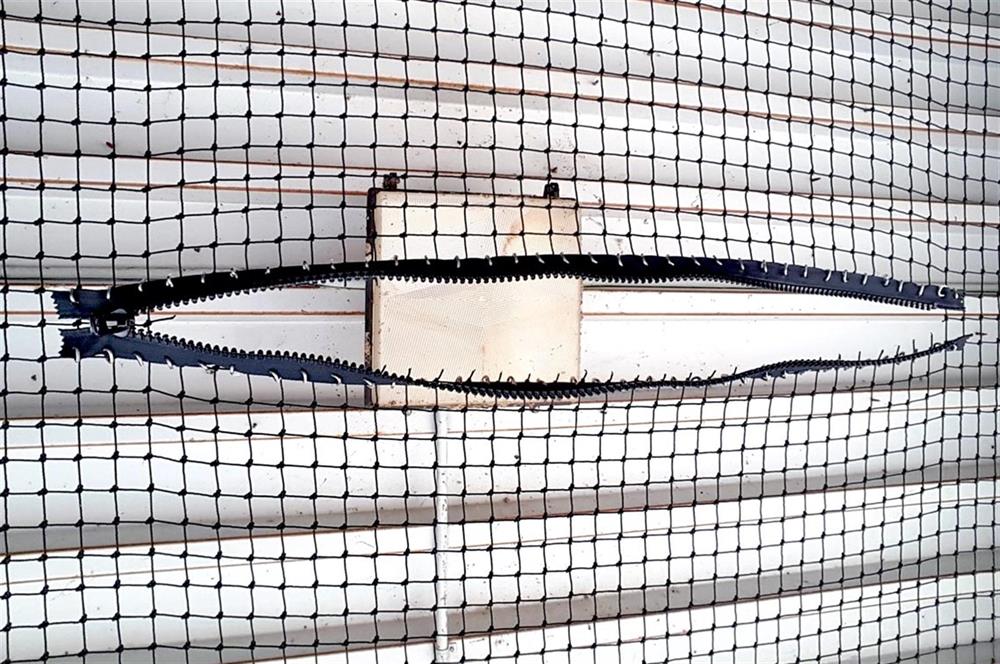

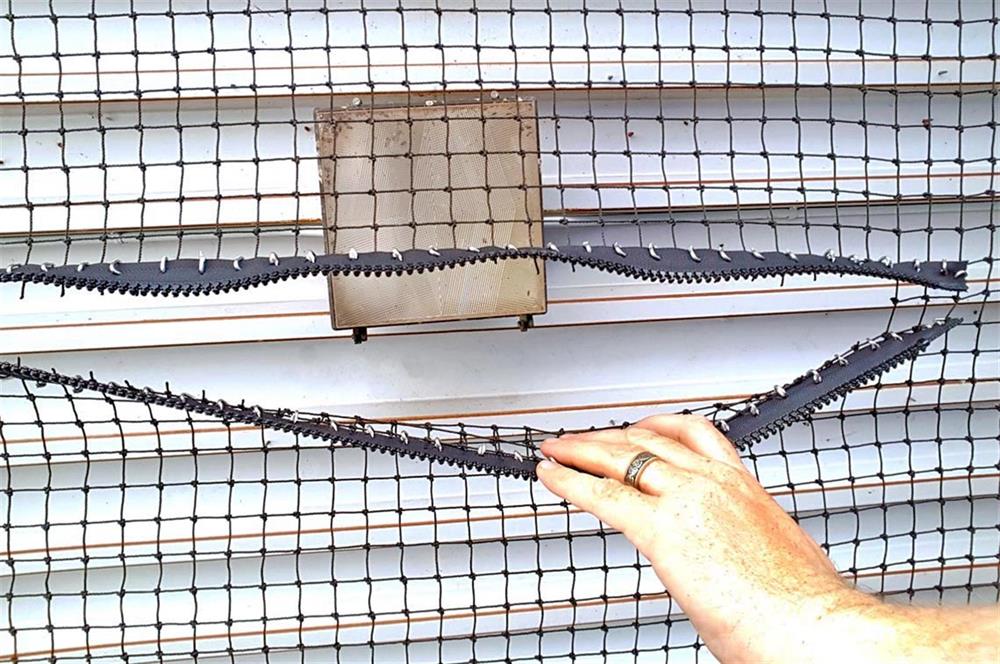

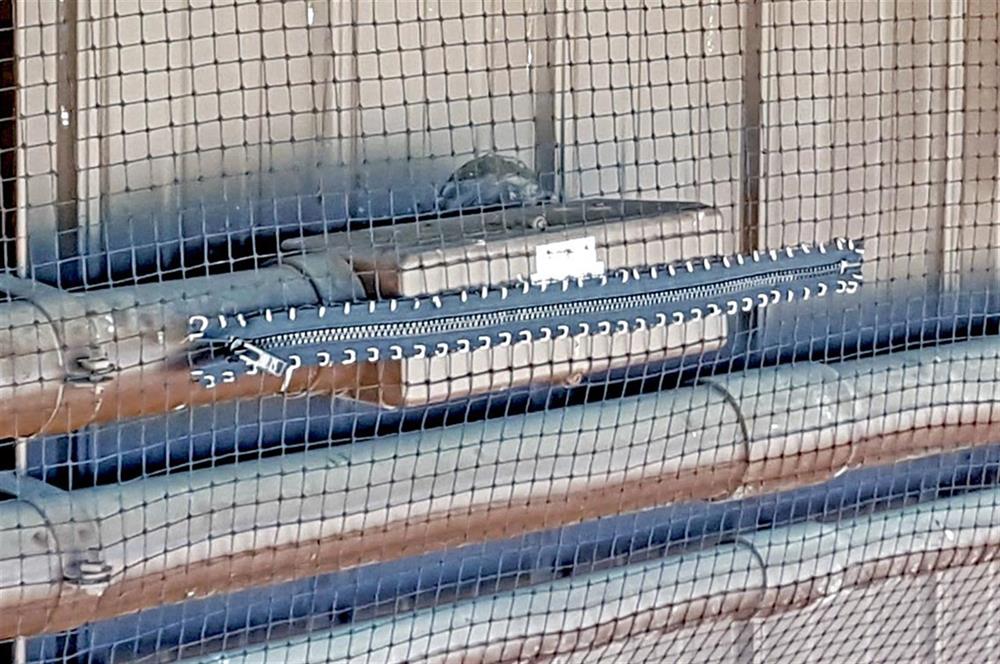

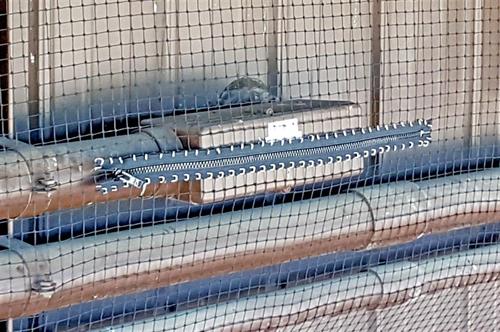

Zipper Attachment: 1 ring per mesh on both sides of Net Zipper
EXAMPLE: 2 foot zipper on 3/4" net uses 64 rings (32 per side)

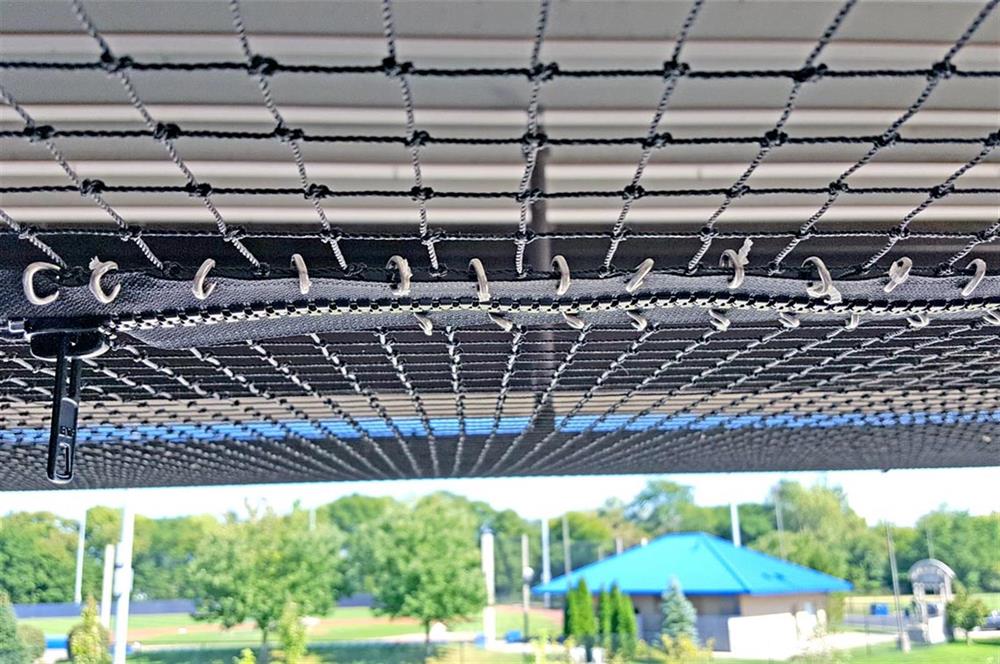

Seam Fastening: 1 ring per mesh on each side of overlap seam
EXAMPLE: 10 foot long seam on 3/4" net uses 320 rings (160 per side)

Netting Accessories and Tools

All the tools and accessories you need to finish a bird netting installation quickly and efficiently.
An air powered, lightweight ring tool that quickly installs stainless steel 3/4" C Rings around netting, cables, wires and other small diameter objects. A must for large bird netting jobs or for animal/bird trap repair.

#C Ring Tool - Air powered C-ring tool for 16 Gage 3/4" C Rings

C-Ring Tool Specifications:
Dimensions: 12-3/4" long X 8-5/8" high X 3-5/8" wide
(32.3cm long X 22cm high X 9.3cm wide)
Weight: 3.0 pounds / 1.3kg
Magazine type: rear loading
Staple type: C style, 3/4"
Magazine capacity: 110 rings (1 strip)
Operating pressure: 95 psi (0.6 Nmm2)
Max. operating pressure: 100 psi (0.69 Nmm2)
Air consumption/cycle: 3.2 cubic inch (0.08 cubic meter)
Inner air hose diameter required: 3/8" (9.5mm)
Sound at gun: 82dB

What's in the box? Operator's manual, spare parts list, service instructions.

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)
