HS-10 Model Comparison Chart
|
Acoustic Specifications |
HS-10C |
HS-10R |
|
Sound Pressure Level (peak) |
136dB A-weighted @ 1m |
144dB A-weighted @ 1 m |
|
Usable Range |
400+m |
750+m |
|
Beam Width |
+/- 15 degrees |
+/- 15 degrees |
|
Frequency Range |
400Hz - 7kHz |
400Hz - 7kHz |
|
STI (at large) |
0.85 |
0.85 |
|
Power Requirements |
|
|
|
Power |
Internal rechargeable battery pack |
Internal rechargeable battery pack |
|
Battery Life |
15 hours @ duty cycle |
8 hours @ duty cycle |
|
Battery Charge Time |
3 hours |
3 hours |
|
Physical Specifications |
|
|
|
Dimensions |
12.5"H x 12.3"L x 10.0"W
31.8cm x 31.2cm x 25.1cm |
12.5"H x 12.3"L x 10.0"W
31.8cm x 31.2cm x 25.1cm |
|
Weight |
12 pounds |
15 pounds |
|
Housing Material |
Flame retardant UV stable composite |
Flame retardant UV stable composite |
|
Colors |
Black (01) |
Black (01), optional colors available |
|
Environmental |
|
|
|
Ingress Protection |
IP65, NEMA3R |
IP65, NEMA3R |
|
Operating Temperature |
-30°C to 60°C / 22°F to 140°F |
-30°C to 60°C / 22°F to 140°F |
|
Humidity Range |
0-95% non-condensing |
0-95% non-condensing |
|
Standard Features |
|
|
|
Auxiliary Input |
Analog line input |
Analog line input |
|
Microphone Input |
Live & Record/Play Mic |
Live & Record/Play Mic |
|
Status Indication LED |
Status & Mode |
Status & Mode |
|

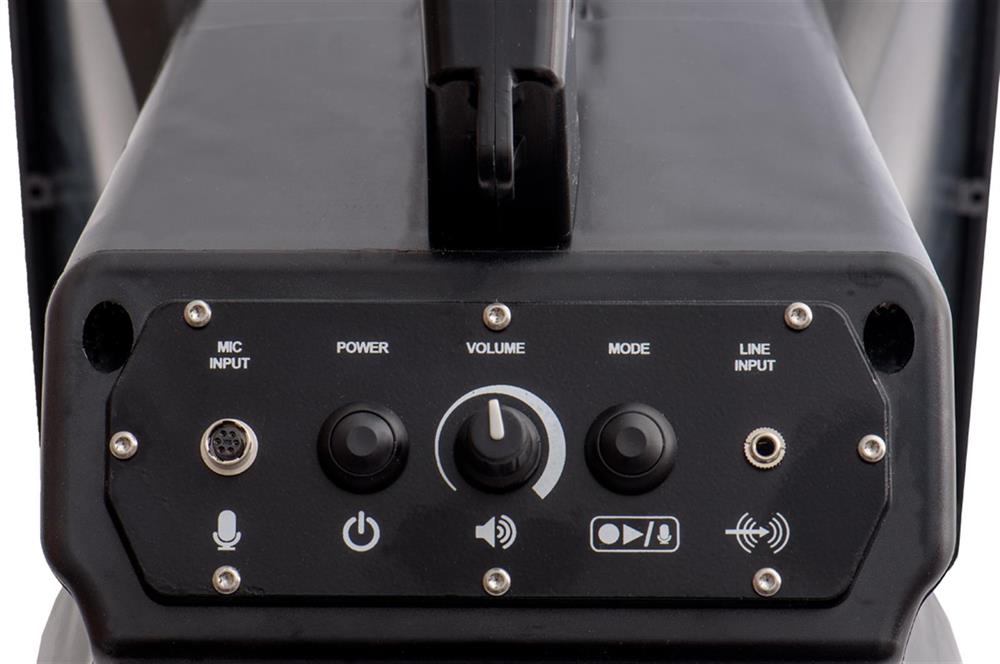

Controls |
Power, Alert, Volume, Mode |
Power, Alert, Volume, Mode |
|
Remote Control |
Phone App-wired |
Phone App-wired |
|
Digital Signal Processing |
Optimized for human voice |
Optimized for human voice |
|
Ordering Information |
|
|
|
Part Numbers |
HS 10C |
HS 10R |

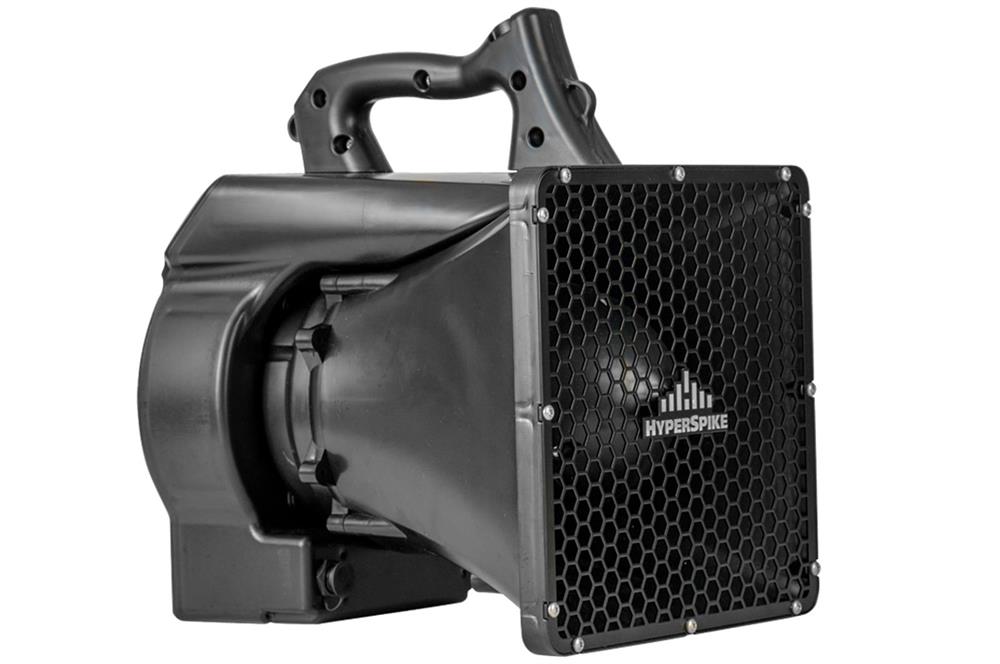

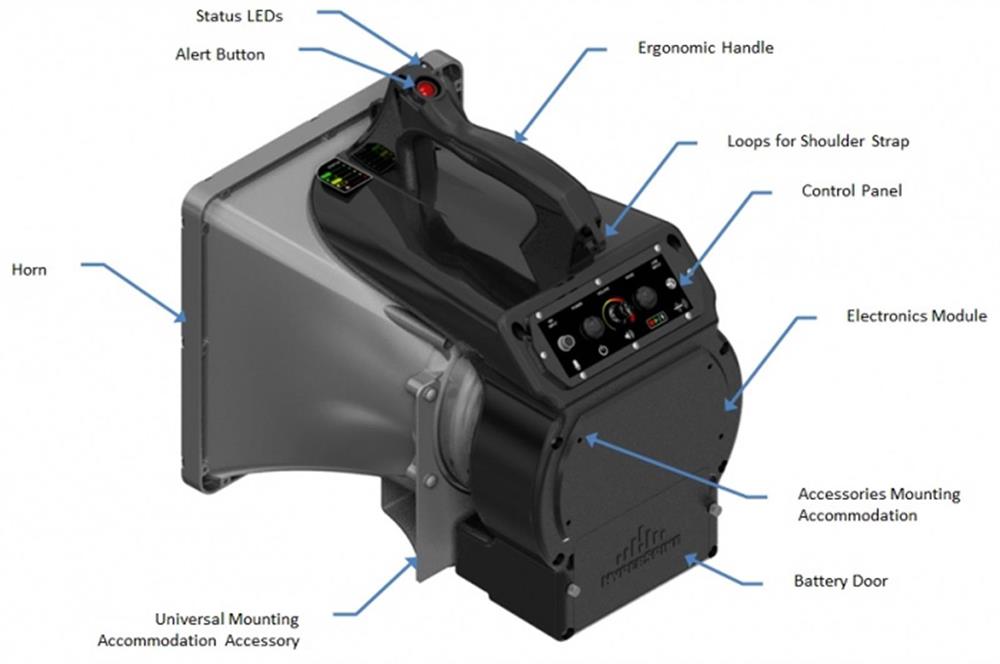

With its unique and proprietary HyperSpike® technology, the HS-10 is the next generation bullhorn speaker/megaphone replacement. The HS-10 is a self-contained portable acoustic hailing device (AHD). Weighing only 15 lbs, the HS-10 packs a peak acoustic output of 144dB for a communication range of 750+m. Easily accessible, the built-in high frequency alert tone is readily activated with the push of a button.

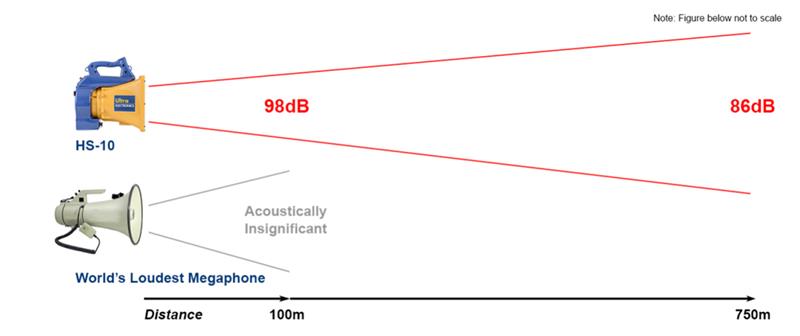

The HS-10 easily penetrates high background noise environments to ensure that unmistakable commands and alert tones are heard. Exceeding traditional bullhorns / megaphones and common hailing devices, the HS-10 delivers clear and intelligible commands and authoritative messages an exceptional clarity.
Model HS-10 Applications
-
Bird and Wildlife Dispersal
-
Search and Rescue
-
First Responders
-
Law Enforcement
-
Campus and Public Safety
-
Emergency and Event Control
-
Maritime Communication
-
Border and Port Protection
-
Crowd Control
Smart Phone App - HyperSpike® is the first Acoustic Hailing Device (AHD) on the market to offer a smart phone application to address the needs of users who want more functionality than a traditional bullhorn or megaphone. The HyperSpike® Mobile Application was developed in an effort to modernize the Acoustic Hailing Device experience and provide customers with a modern user interface and features for remote control of their device.
The HyperSpike® Mobile Application will put everything an operator needs in the palm of their hand. Whether you are wired to the device or connected via a Bluetooth receiver, the application will provide the standoff capability users need.
The HyperSpike® Mobile Application is available at no cost through Google Play or iTunes.
Included Accessories with the HS-10
-
Battery Charger
-

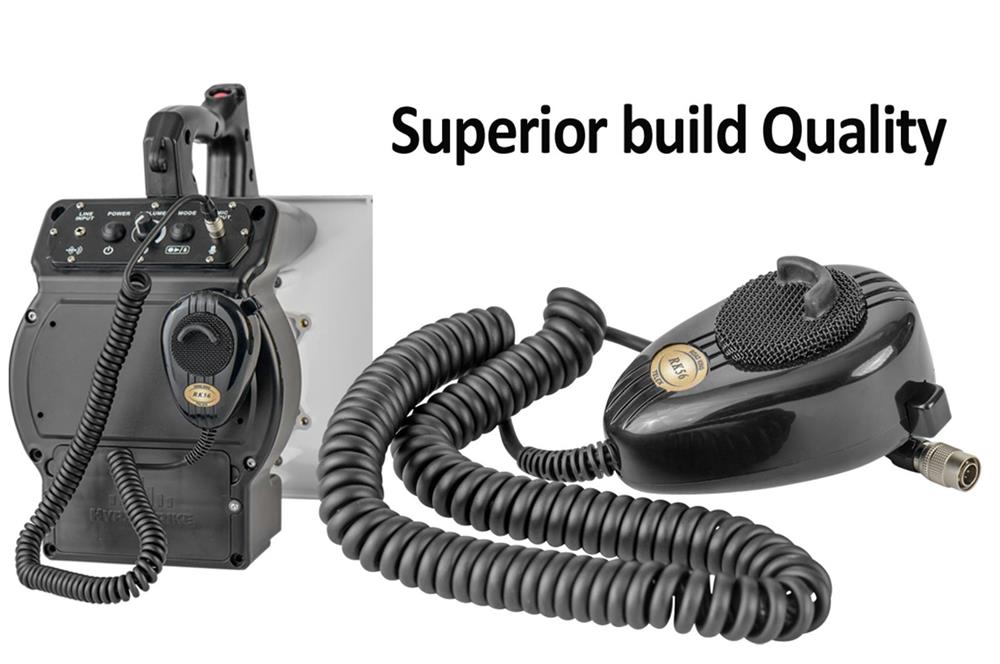

Wired Microphone
-
Line Input Cable
-
HyperSpike Mobile App
-

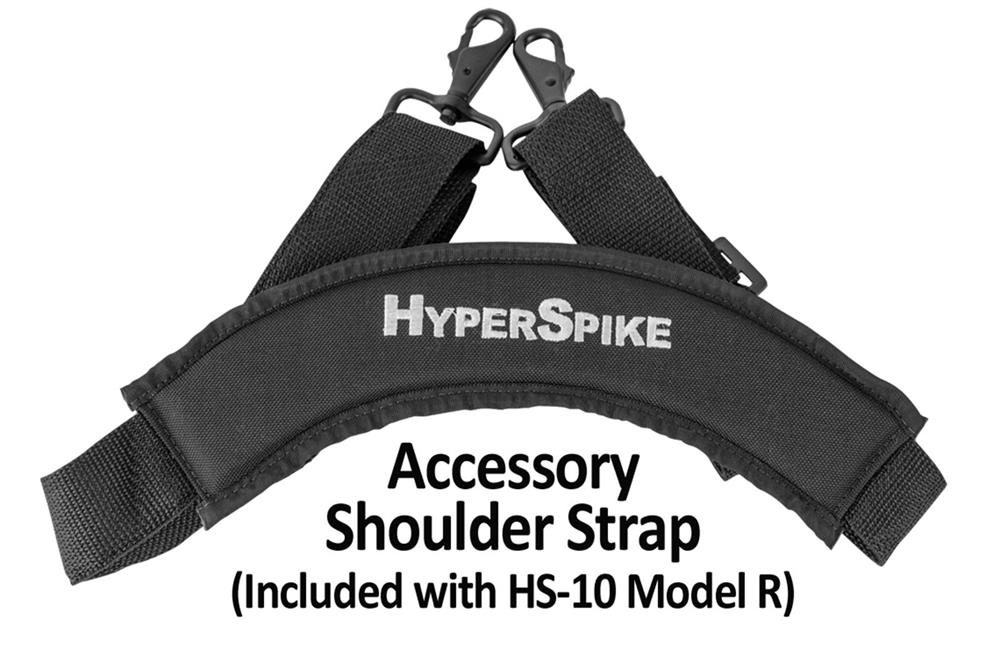

Shoulder Strap (Model R only)
-
Accessory Bag (Model R only)
HS-10 Optional Accessories (not included)
-
Wireless Microphone
-
Soft Cover Carrying Case
-
Transit Case
-
International Adapter Plugs
-
Universal / Tripod and Mount
Please call for pricing and availability.
With its unique and proprietary HyperSpike technology, the
NEW HS-10, next generation of the HS-Micro, is a self contained, portable acoustic hailing device that comes in two models. Weighing only 15 lbs, the HS-10R packs a peak acoustic output of 144dB for a communication range of 750+m. Easily accessible, the built-in high frequency alert tone is readily activated with the push of a button.
The HS-10 easily penetrates high background noise environments to ensure that unmistakable commands and piercing alert tones are heard. Exceeding traditional megaphones and common hailing devices, the HS-10 brings clear and intelligible commands and authoritative messages to the intended target.
This focused beam is used to transmit selected wildlife distress calls, critical communications, security commands, predator calls or alert tones that can be clearly understood out to 1/4 of a mile.
Available in 2 Models:
HS-10C - 136dB Black
HS-10R - 144dB Black

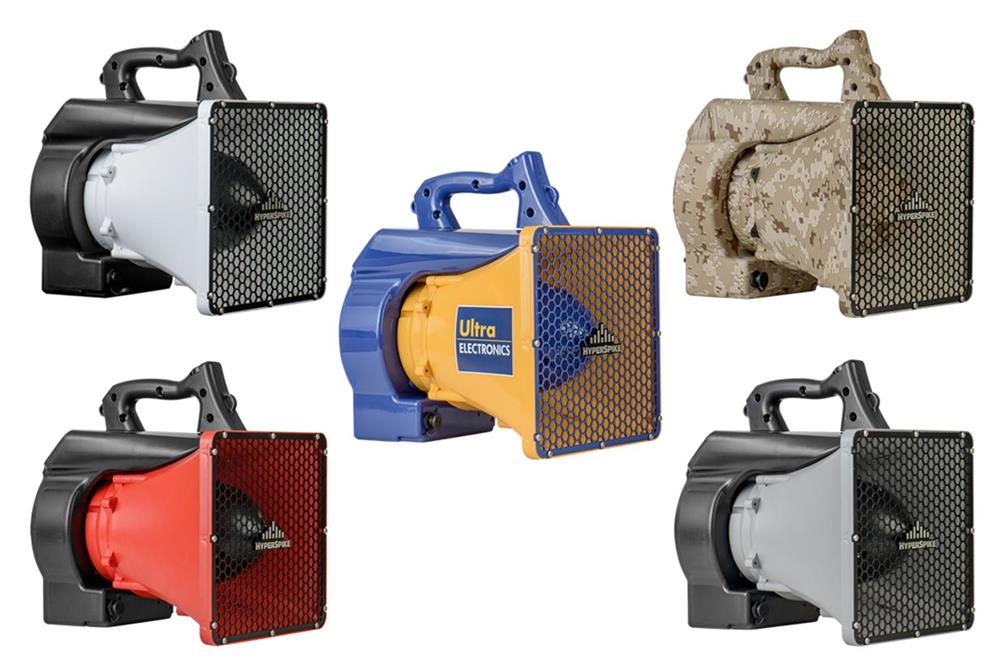

Colors are available for an additional cost.
Please contact Nixalite for price and availability.
