HyperSpike 18 RAHD Specifications:
Acoustic Performance
Sound Pressure Level Peak - 156 dB A-weighted @ 1 meter
Acoustic Beam Width - +/- 5 deg. (10 deg. conical at 2 kHz /-3 dB)
Usable Range - Exceeds 2,000 meters (2,187 yards, 6,562 feet)
Frequency Response - 245 Hz - 10 kHz
Positioning Specifications
Slew Rate - Tilt: 45 deg. / sec. Pan: 70 deg / sec.
Range of Motion - Tilt: 90 degrees Pan: 215 degrees
Interface
Communications Interface - T10/100 based Ethernet
Mechanical
Dimensions System - 35" wide x 40.5" high x 27" deep (89 cm x 102.8 cm x 68.5 cm)
Dimensions Emitter head - 20" diameter x 15" deep (50.8 cm x 38.1 cm)
Dimensions Opti-Port - 5.75" diameter x 5.5" deep (14.6 cm x 14.0 cm)
Weight - 260 lbs (118 kg)
Emitter Housing - Carbon Fiber
Housing Color - Grey or custom color
Electrical Requirements
Power Input - 100-250 VAC 50/60 Hz
HyperSpike 18 Details
-
Moog electric pan & tilt positioning device
-
Network ready with Ethernet communication interface
-
156 dB peak acoustic output
-
Wide frequency range of 245 Hz to 10 kHz
-
Effective range of 2,000 meters (2,187 yards, 6,562 feet)
-
Penetrating high frequency alert tone built-in
-
Opti-Port equipment bay makes customizing easy
-
Add accessories such as cameras, dazzlers, spot lights, etc
Applications anywhere long range transmission of clear and concise acoustic information is needed.
-
Military Security
-
Ship & Cruise Line Security
-
Perimeter Protection
-
Law Enforcement, SWAT
-
Bird & Animal Dispersal
-
Oil & Gas Platforms
-
Search & Rescue Craft
-
Borders & Port Security
-
Keep people, animals and birds out of restricted areas
-
Long range instructions or hazard notification
HyperSpike 18 RAHD Package
(item # HS 90097A-311-04) - Navy Gray
-
HyperSpike 18 Emitter Head
-
Moog Pan & Tilt Positioning Device
-
Laptop Computer
-
System Control Software
-
Daylight Camera
-
USB Microphone
-
Joystick
-
HS Audio Optimizer Software
-
Crate Package
-
Illumination, night cameras accessories available

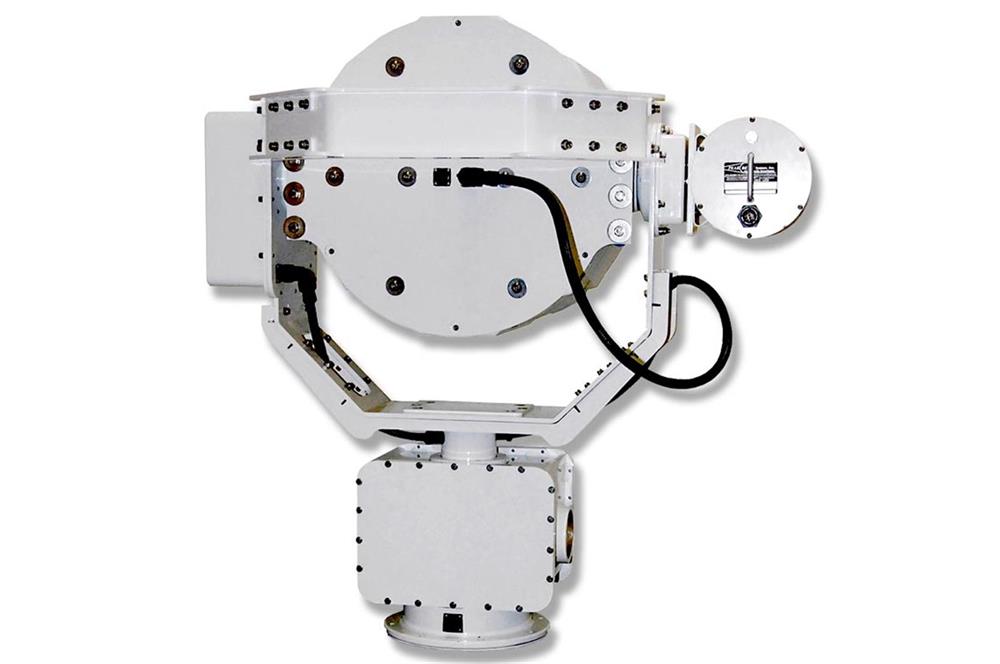

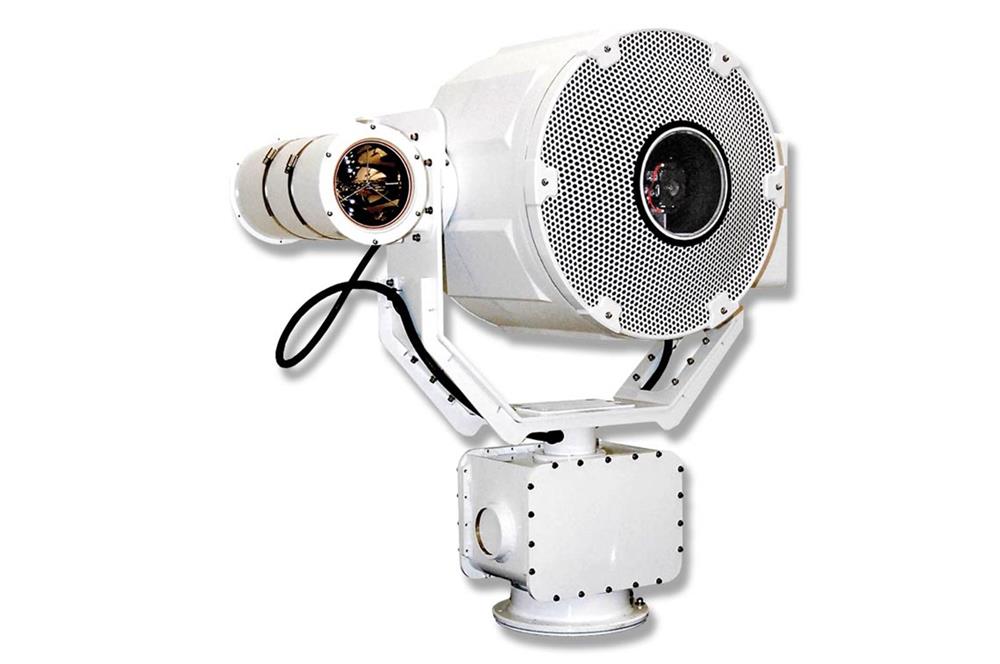

Remote control model combines the benefits of the standard HyperSpike model 18 with a Moog tilt and pan positioning device to provide clear and authoritative commands and acoustical information in remote locations. The HyperSpike 18 RAHD provides a peak acoustic output of 156 dB for an effective communication range of 2,000 meters (2,187 yards, 6,562 feet).
The HyperSpike 18 RAHD uses HyperSpike sound generation technology to focus sound waves into a well defined 5 degree +/- sound beam that can be directed at individual targets, even if the target is over a mile away.
The Opti-Port equipment bay allows for the addition of video cameras, search lights, laser dazzlers and other mission critical sensors to give operators enough time to evaluate the threat and respond with the appropriate measures. Use HyperSpike 18 RAHD to transmit critical communications, security commands, selected wildlife distress calls, predator calls or alert tones that can be clearly understood out to over a mile.
Please Contact Nixalite For Prices & Availability (888) 624-1189
