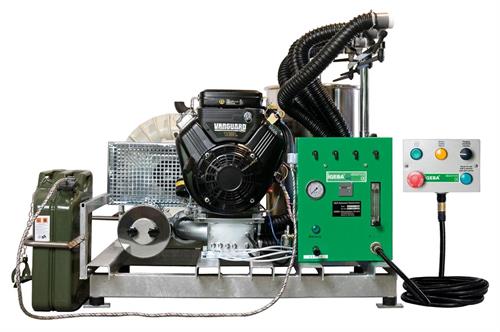

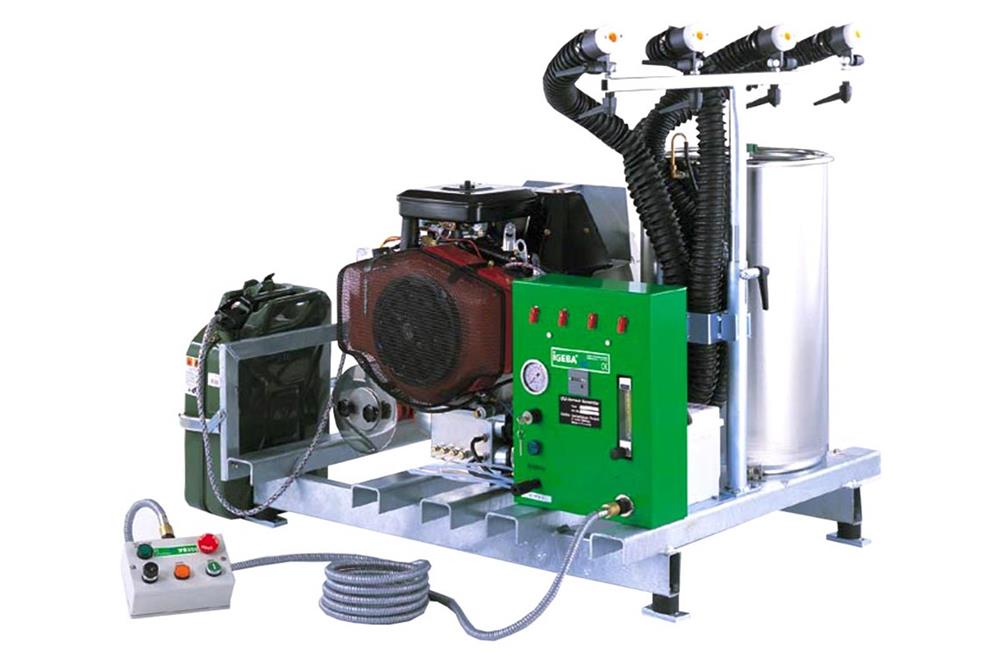

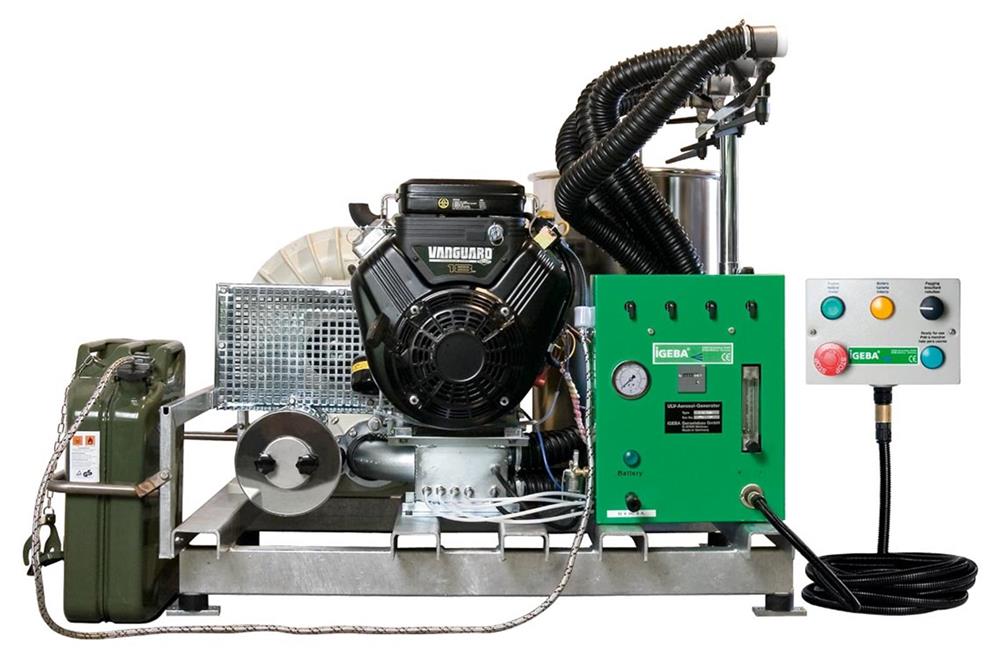

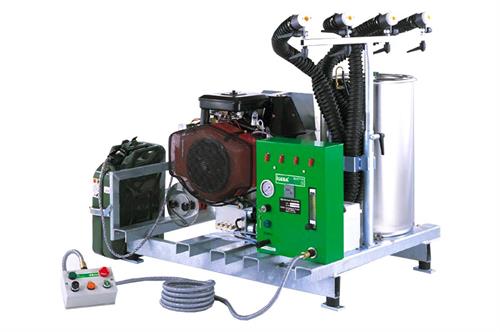

IGEBA® U40M HD ULV Fogger

IGEBA® - The Global Standard for Excellence in Fogging & Spraying

A self-contained, frame mounted, gas motor driven ULV cold fogger and sprayer. Powered by a Briggs & Stratton commercial grade 4-stroke engine, no power cords or generators needed. High output makes the U40M ideal for spraying or treating large open spaces, indoors and outdoors including plant nurseries, golf courses, city parks, resorts, private properties, residential areas, etc.

NOTE: DO NOT USE STERI-FAB IN THIS FOGGER.

Nixalite of America is the only authorized distributor and service center for IGEBA Thermal and ULV Fogging Equipment serving the United States and Canada.

Authorized sales only to the USA, Canada, Carribean & Puerto Rico.
All other countries contact IGEBA directly.

IGEBA® U40M HD ULV Fogger

Models:
Item #:
Price:
Sale Price:
Qty:

IGEBA U40M HD Details
Specifications
Applications
Downloads

IGEBA U40M HD Details

Applies all types of fogging and spraying solutions
Briggs & Stratton 18 HP Vanguard 4-stroke motor
Self contained unit - no power cords or generators needed
Highest quality standards of any ULV fogger/aerosol generator
All stainless steel tube chassis with low center of gravity
All stainless steel fuel and formulation tanks
All critical parts made of brass, Teflon or Viton
Four 360 degree adjustable, high flow, precision nozzles
In cab remote controls for starting and stopping fog
Built in manometer to control flow and pressure
Many options available including tank agitator, hose extensions, etc

Additional U40M HD Options:
Hose Extension w/Nozzle 33ft long (10m) combination extension hose to expand the reach.
Tank Agitator keeps solutions properly mixed during application.
Contact Nixalite for more information on U40M HD options.

IGEBA U40M HD Specifications

Weight Empty (lbs/kg): 432 / 196
Dimensions Inches: 43.3 x 37.4 x 26.7
Dimensions Cm: 110 x 95 x 68
Standard Solution Tank Capacity: 19.8 G / 75 L
Fuel Tank Capacity: 5.3 G / 20 L
Fuel Requirements: Unleaded Gasoline
Fuel Consumption: 1.2 G hr / 4,5 L hr
Max Flow Rate (water): 15.8 G hr / 60 L hr
Motor Performance: 18HP / 13,4 Kilowatts

Use The IGEBA U40M HD For:

Water and oil based solutions and formulations
For all ULV and cold fogging/spraying applications
Mosquito, gnat, fly and other flying insect control
Disease control through insect, bacterial and fungal control
Disinfection of large areas, surfaces and objects
Disinfection or treatment of poultry and livestock containment
Aphid, mildew and rot control in orchards, nurseries, etc
Mold & mildew control in commercial applications

IGEBA U40M HD Brochure
IGEBA U40M HD Owners Manual and Parts List (without mixer)
IGEBA U40M HD Parts List (with mixer)
