Net Cable Stainless Steel

Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

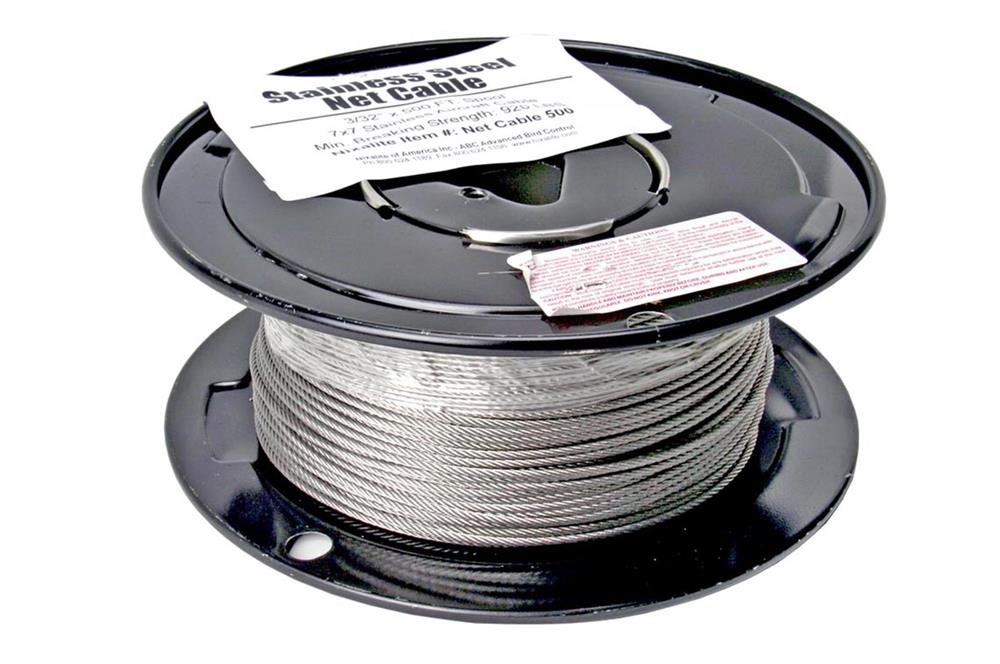

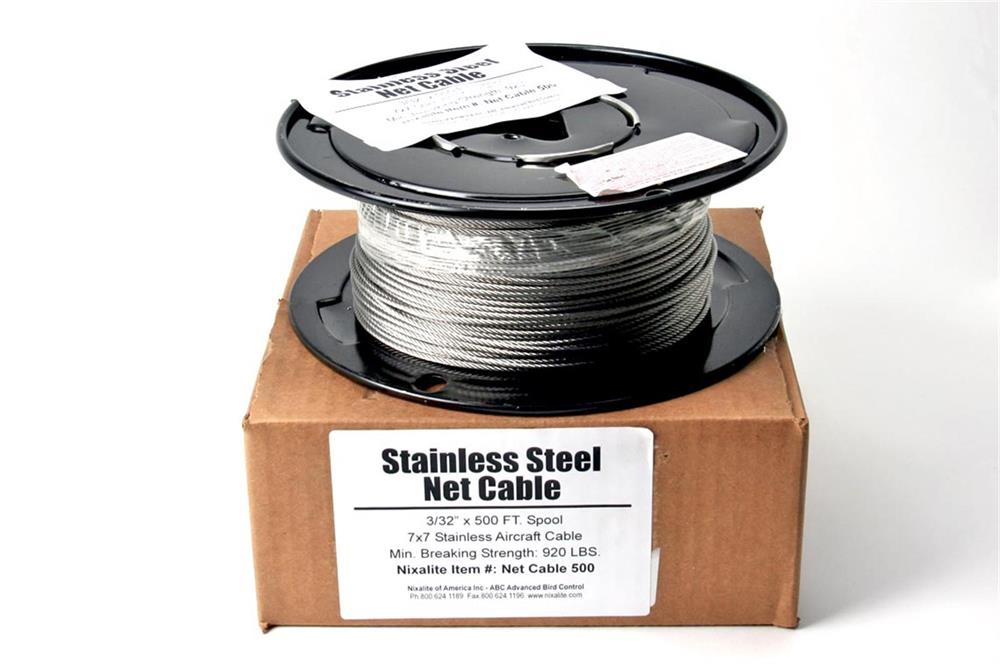

Stainless Steel Net Cable 250 and 500 foot spools

Aviation grade 304 stainless steel cable
3/32" (2.4 mm) diameter steel cable
920 lbs. (412.7 kg) minimum breaking strength
Flexible and easy to cut with the Nixalite Cable Cutting Tool

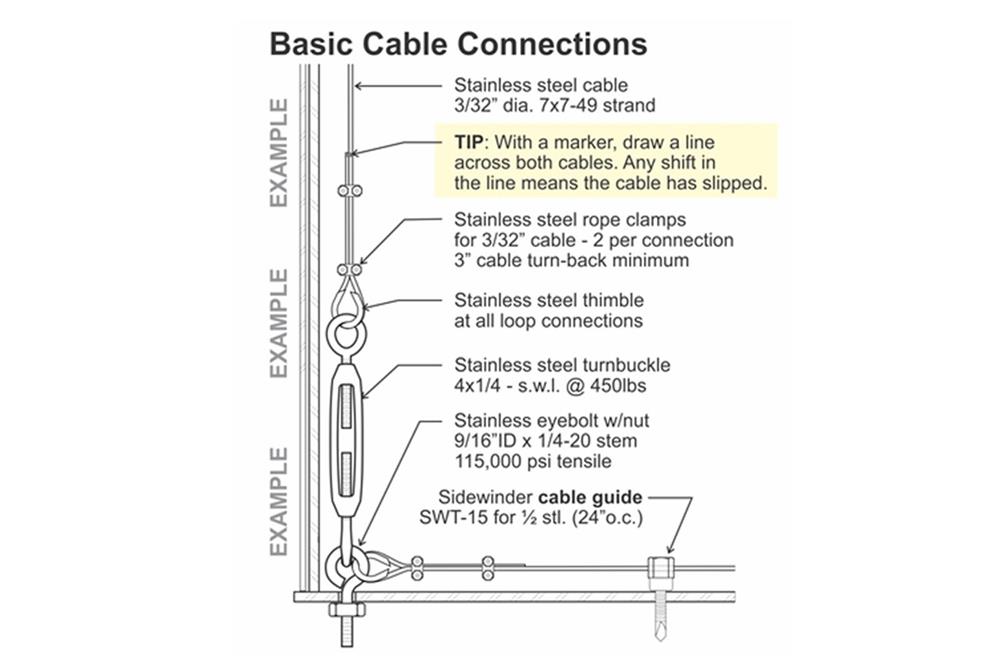

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

Net Cable Stainless Steel

Item:
Item #:
Price:
Sale Price:
Qty:

Accessories
Applications
Installation Tips
Downloads

	Item	Description	Price	Qty
	Cable Cutter	HD Cable Cutter Pliers	$44.95

When and Where to use Stainless Steel Net Cable:

Use for all installations exposed to the weather or in conditions that could corrode, rust or degrade cables of lesser materials. Provides the maximum strength for the diameter size while maintaining cable flexibility and ease of installation.
Use to tension, anchor or otherwise fix in place the bird exclusion netting lines available from Nixalite of America Inc. A tensioned perimeter & cross support cable system is the strongest and longest lasting support for bird exclusion netting installations.
Use to anchor, support or otherwise fix in place the deer and perimeter fencing and fence hardware lines available from Nixalite of America Inc. Use as fence post supports, top and middle fence supports and more.
Use as a perimeter cable for overhead grid wire installations. Run our lighter FliteLine cable to create the large grid boxes.

Maximum tensioned cable length by turnbuckle size:

Small turnbuckle – 25 feet (7.62 M) unbroken length
Medium turnbuckle - 50 feet (15.24 M) unbroken length
Large turnbuckle* - 75 feet (22.8 M) unbroken length
Runs beyond 75 feet (22.8 M) are not recommended. If circumstances require it, use a turnbuckle at each end of the cable run.

*Note: use caution when using the large turnbuckles. They can be tensioned beyond the capacity of some net hardware and surface materials.

Net Cable Installation Tips:

When estimating for Net Cable, always add extra to the total. Each loop connection can use a foot or more of cable. There are never less than 2 loop connections per cable run.
After completing the loop connection, use a magic marker and draw a solid line across both the tensioned and tag ends of the cable. You can tell if the cable has come loose as the drawn line will be misaligned.
Always follow the Cable and Cable Hardware maintenance schedules available from Nixalite of America Inc.
If you cannot drill, cut or weld on the installation surface, you still might be able to fasten the Net Cables. You might be able to create individual cable loops around parts of the structure to which you can fasten the tensioned perimeter and cross support cables. Call Nixalite for details.

Links:
Tensioned Cable Hardware Installation
Estimate for Net Hardware
Net Installation Guide
Net Planning Guide

PDFs:
Planning A Bird Net Installation
Netting Application Examples
Eaves & Dormer Netting Examples
Netting Hardware Quick Quote
Tensioned Cable Installation Example
