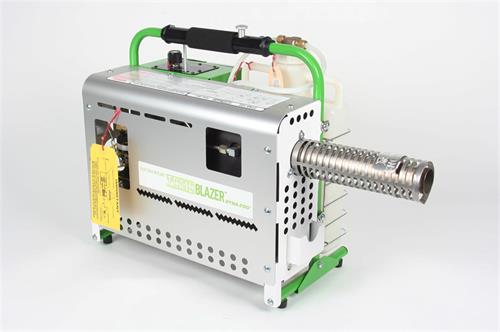

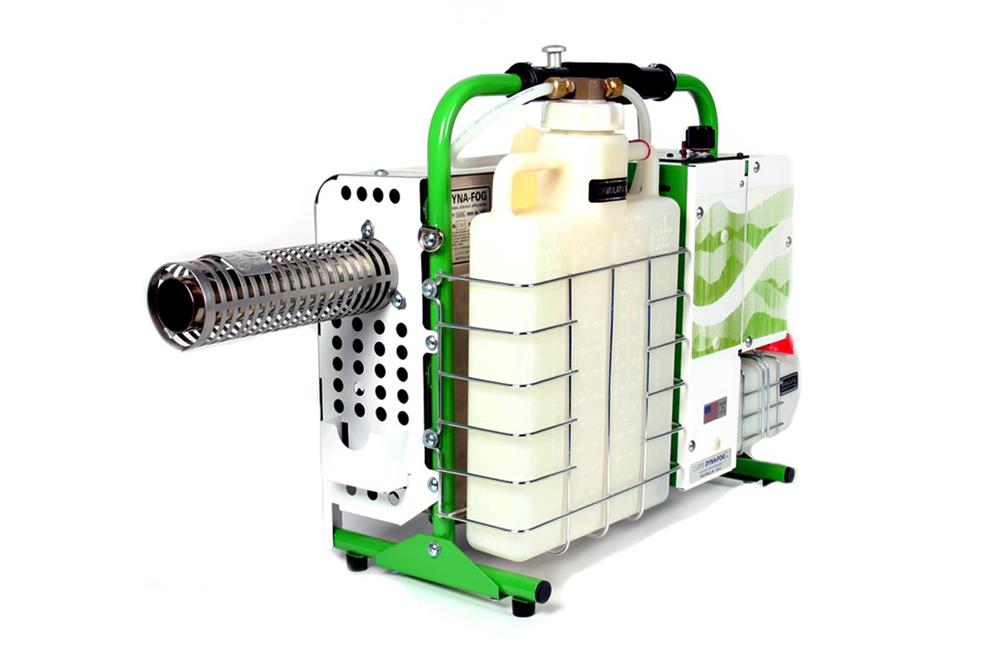

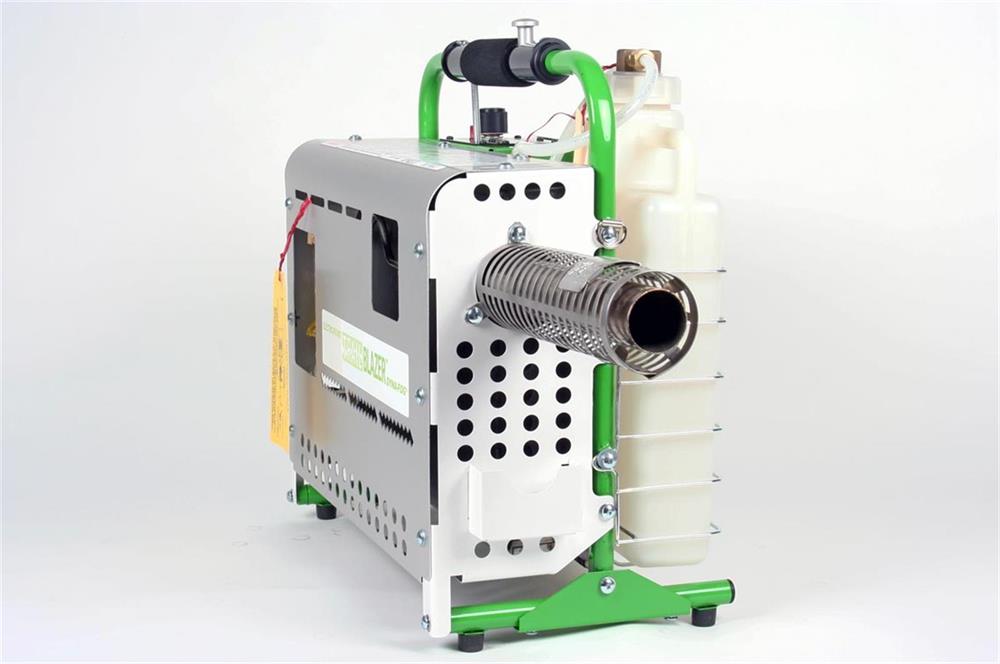

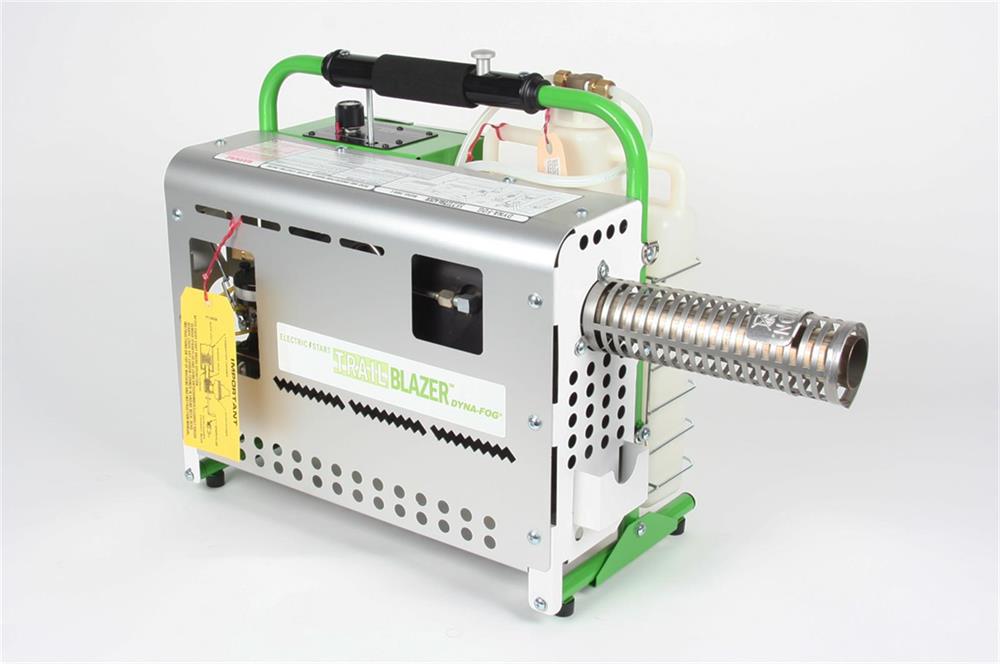

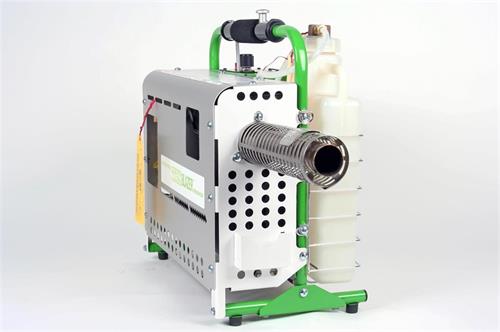

Trailblazer Thermal Fogger

Trailblazer Performance
Trailblazer provides high volumes of fog for the control of flying insects such as mosquitoes, gnats, house flies, sand flies and black flies. It is also used in the application of bird repellents, disinfectants and other solutions. The Trailblazers unique design produces a high output thermal fog with virtually no carbon monoxide, making it ideal for indoor as well as outdoor applications.

Please allow extra shipping time for your Trailblazer Order.
Contact Nixalite for more information.
Made in the USA

NOTE: DO NOT USE STERI-FAB IN THIS FOGGER.

Trailblazer Thermal Fogger

Model:
Item #:
Price:
Sale Price:
Qty:

Trailblazer Details
Specifications
Downloads

Trailblazer™ Standard Features

Single 24 hp pulse-jet principle engine.
12 volt electric starting system.
All formulation controls at operators hand.
Formulation / fuel tanks are not pressurized.
Filters in fuel and formulation lines.
Lightweight and user portable.
Starts with supplied D-cell batteries or a 12v battery.
Chemical resistant epoxy paint.
Comes complete with instruction manual, batteries, auxiliary start cable and 2 cleanout brushes.
1 year warranty.

Trailblazer™ Specifications

Model: 2600 E.
Engine: Resonant pulse principle.
Performance: 24 hp/hour or 18 kw/hour.
Fuel Type: Gasoline.
Fuel Consumption: 0.3 GPH or 1.1 liters/hr.
Fuel Tank: Corrosion resistant - 0.85 qts or 0.8 liter.
Formulation Output: 0-5 gal/hr, or 0-19 liters/hr, up to 30,000 cubic foot fog per minute.
Droplet size: 0.5 - 50 microns.
Formulation Container:1.0 gallon or 3.8 liters.
Power Supply: Eight 1.5 V "D" size alkaline batteries. Any 12 V DC vehicle battery (connect to cigarette lighter receptacle with auxiliary start battery cable) supplied.
Overall Dimensions: 32" Long x 14" Wide x 21" High.
Total Weight: 41 lbs.

Trailblazer Brochure

NOTE: DO NOT USE STERI-FAB IN THIS FOGGER.
