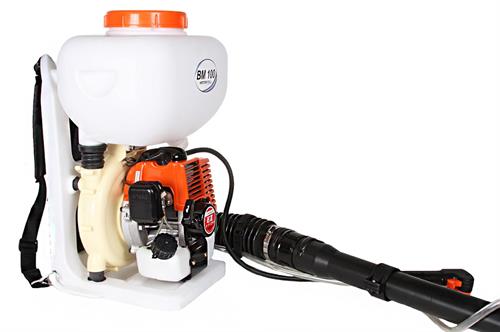

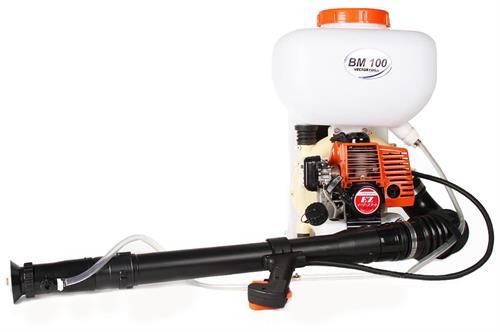

VectorFog BM100 Motorized Backpack Sprayer

• 4.2 Gallon Tank Capacity (16 liters)
• 60 LPH Flow Rate
• 20 - 30 Microns Droplet Size
• Air-cooled 2 - Stroke 40cc Gasoline Engine
• 23.3 lbs (10.6 kg) Net Weight
• 16" x 20" x 28" in (42 x 51 x 71 cm) Dimensions
• Suggested for Outdoor Use or Well Ventilated Spaces
• FDA Listed Medical Device
• 12 Month Limited Warranty

Read and understand the operation manual for the VectorFog BM100.

When spraying outdoors, you should only spray for short periods of time and when there is minimal wind. When spraying indoors you should start at the furthest point away from the building and work your way until you get to the entrance or exit.

It is essential to read the chemical manufacturer’s instructions before you start using the product, including diluting ratio and safety precautions. Only experienced personnel should operate this equipment.

It is very important to use protective equipment when handling chemicals especially for this machine.

Incorrect use of this equipment, or operation by unqualified personnel, could result in serious risk of injury, issues when product is in use and may also create faults in the machine which will NOT be covered under the warranty.

BM100 Motorized Backpack Mist Sprayer is constructed with unique high-density polyethylene along with other chemical resistant materials. It is equipped and furnished with a flat spray that is adjustable, a hollow cone and a jet stream nozzle in order to support every issue requiring spraying. It has a virtually unbreakable wand which inhibits damage that is common among brass or brittle plastic wands.

It is excellent for crop and plant protection as well as applications of pest control. It is powered by a 40 cc engine that is designed with an air-cooled 2-stroke and a powerful fan producing a spray range of up to 20 meters. Absolutely suitable for misting liquid formulations as it can produce droplet sizes even lower than 60 microns. It is also exemplary for insect control and can spray or diffuse up to a 90-degree angle.

The 16-liter tank can cover up to 1600 square meters of outdoor area and 2600 square meters of indoor area. This mist blower is light enough to be carried around as it features an ergonomic back structure and padded shoulder straps. It has a recoil start, anti-vibration mounts, complete with an electronic transistor ignition module.

VectorFog BM100 Manual
VectorFog BM100 Brochure
VectorFog BM100 Limited Warranty

Perfect for Crop/Plant Protection and Pest Control

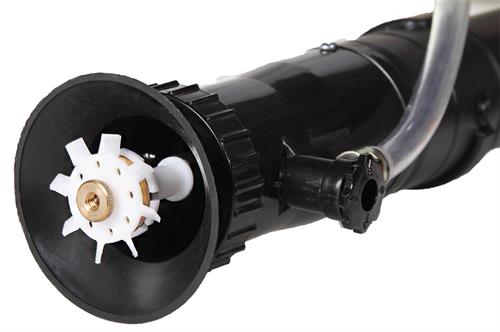

Equipped with an adjustable, flat spray, hollow cone and jet stream nozzle the BM100 can accommodate the majority of your spraying needs. Unlike common brass or brittle plastic wands, the high-density polyethylene wand is virtually unbreakable.
The portability and large tank size make it ideal for applying pesticides, disinfectants, herbicides, fungicides and odor neutralizers in even the largest of locations.

Vectorfog® BM100 Backpack Mist Sprayer is powered by a 40cc two stroke engine. The ratio between gasoline and oil is 25:1. You can use leaded or unleaded gasoline and oil marked as suitable for two stroke engines. Let the engine heat up for 3-5 minutes before application. Microdroplets leave surfaces dry, eliminating manual wiping.
