Effective Pest Bird & Wildlife Control Solutions Proud to be Family Owned and Operated Since 1950!


Zinc Plated Eye Bolt with Shield Anchor Zinc Plated Eye Bolt with Shield Anchor specs Zinc Plated Eye Bolt with Shield Anchor install diagram
Click an image to see a larger picture.

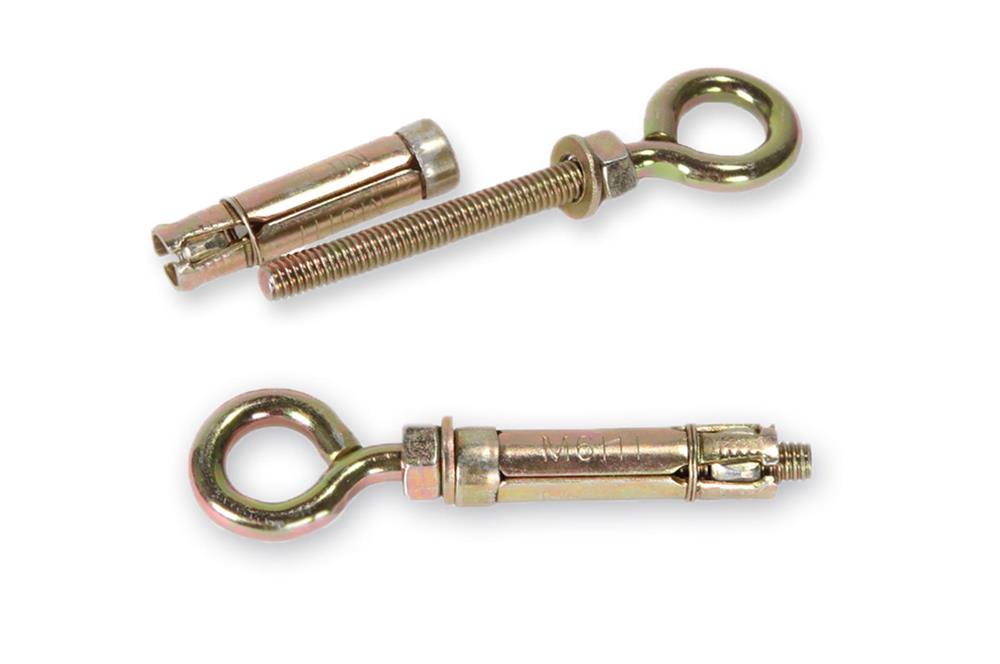

Zinc Plated Eye Bolt with Shield Anchor

Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Corner Hardware - Maximum strength hardware designed to bear the loads of the bird netting installation. Used at all corners, cable breaks and at both ends of support cables.

Zinc Plated Eye Bolt with Shield Anchor Corner Hardware
  • Heavy duty eye bolt with shield anchors are used for corner support cable hardware in solid masonry surfaces (concrete, stone and block) for the Tensioned Perimeter Net Cable system. Use at least one Eye Bolt with Shield Anchor at all cable corners, breaks and changes in cable direction.
  • Maximum distance between Eye Bolt with Shield Anchors is 50 feet. For longer spans of cable, use multiple Eye Bolts and Shield Anchors.
  • Used as anchoring points for overhead wire grid systems.

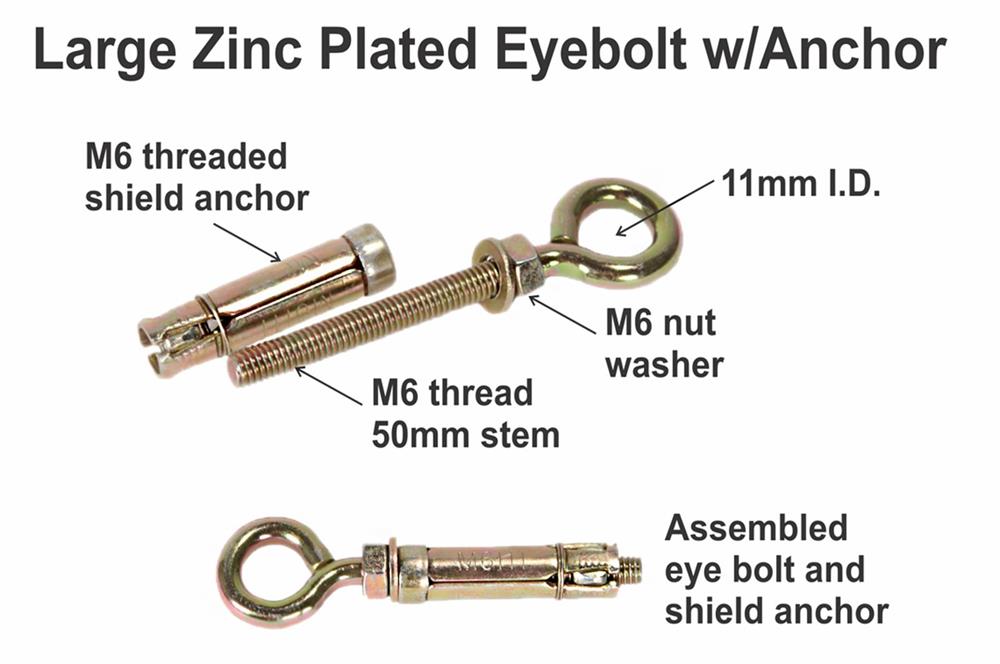

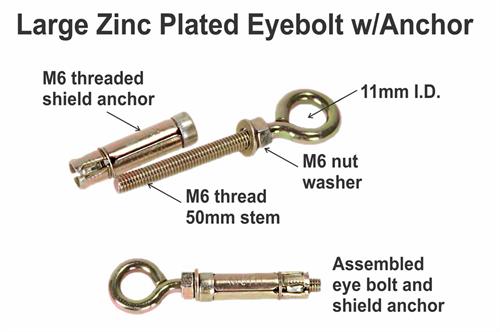

  • The eye bolt has an 11 mm eyelet inside diameter. The stem is an M6 x 50 thread and included one washer and hex nut. The Shield Anchor has an inside thread of 6 mm and the overall length is 40 mm.
  • Eye bolts and shield anchors are sold in packages of 10 each.
Available in packages of 10

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

Zinc Plated Eye Bolt with Shield Anchor


Item #:
Price:
Sale Price:

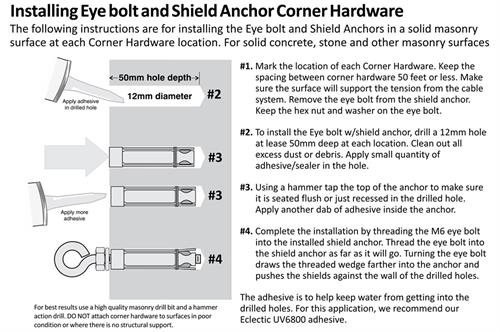

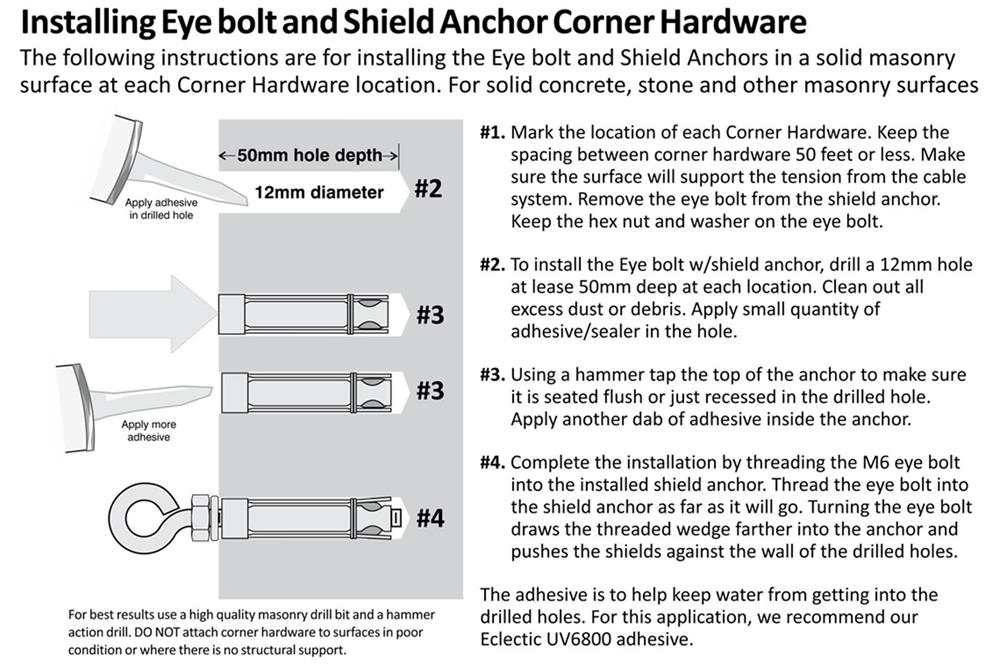

Eye Bolt with Shield Anchor Corner Hardware installation specs
  • To be installed in solid masonry surfaces only. Make sure that the installation surface will support the tension of the cable system. DO NOT install in surfaces in poor condition. It is your responsibility to ensure that the masonry will withstand both installation and tension of the finished netting or fence.
  • With a hammer drill and masonry bit, drill a 12 mm diameter hole, at least 55 mm deep. Blow out the dust or debris from the drilled hole and apply a small quantity of adhesive inside the hole.
  • Push the shield anchor into the hole. Tap the top of the anchor with a hammer to ensure it is fully seated in the hole. Apply a small amount of adhesive inside the installed anchor.
  • Screw the eyebolt (with the hex nut and washer) into the installed shield anchor. Keep turning the eyebolt to pull the threaded wedge further up into the shield anchor which pushes the four sides of the anchor against the walls of the drilled hole.
  • Maximum spacing between Eye bolt and Shield Anchor Corner Hardware is 50 feet. For runs longer than 50 feet, install multiple Eye bolt and Shield Anchor Corner Hardware along the path of the cable.
  • Each of the eye bolts (for this hardware) will hold at least 1 large, 2 medium or 3 small turnbuckle hooks or 2 connection thimbles.
When and Where to Use Eye Bolt and Shield Anchor Corner Hardware:
  • The Eye bolt and Shield Anchor Corner Hardware are designed to anchor the corners and main fastening points of the tensioned perimeter cable systems used to secure bird netting enclosures and overhead grid wire systems.
  • Can be installed in solid concrete, stone and block.
Eye Bolt and Shield Anchor Corner Hardware Installation Tips:
  • When drilling into solid concrete, stone or block, use a hammer drill with the correct sized masonry bit.
  • Blow the cutting debris out of the hole before installing the shield anchors.
  • IMPORTANT: Always make sure the the surface will support the tension from the cable system. Do not attach corner hardware to surfaces in poor condition or where there is no structural support.
  • Always follow the Cable and Cable Hardware maintenance schedules available from Nixalite of America Inc.
Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Corner Hardware - Maximum strength hardware designed to bear the loads of the bird netting installation. Used at all corners, cable breaks and at both ends of support cables.

Zinc Plated Eye Bolt with Shield Anchor Corner Hardware
  • Heavy duty eye bolt with shield anchors are used for corner support cable hardware in solid masonry surfaces (concrete, stone and block) for the Tensioned Perimeter Net Cable system. Use at least one Eye Bolt with Shield Anchor at all cable corners, breaks and changes in cable direction.
  • Maximum distance between Eye Bolt with Shield Anchors is 50 feet. For longer spans of cable, use multiple Eye Bolts and Shield Anchors.
  • Used as anchoring points for overhead wire grid systems.

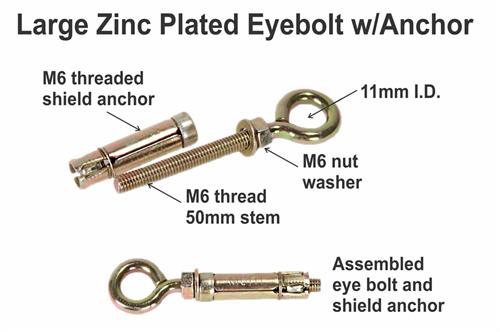

  • The eye bolt has an 11 mm eyelet inside diameter. The stem is an M6 x 50 thread and included one washer and hex nut. The Shield Anchor has an inside thread of 6 mm and the overall length is 40 mm.
  • Eye bolts and shield anchors are sold in packages of 10 each.
Available in packages of 10

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)
